Description

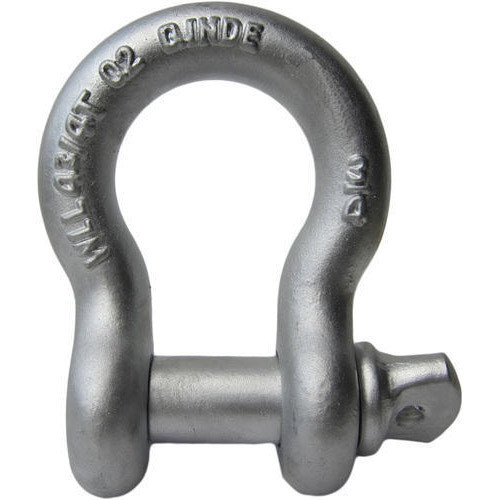

Bow Shackle Recognizable by their ‘O’ shape, bow shackles are commonly used on multi-leg slings. Ideal for jobs such as rigging, bow shackles provide an easy way of fastening chains and straps securely. These shackles come with a variety of weight limits , which can be particularly used for multi-leg Lifting slings
Features:
• Designed for easy Frequent Application.
• Enhanced safety with bolt , nut and cotter split pin.
• Reduces the need to tighten pin before each application.
• For use on direct lifting or single load systems.
• Traceability code, capacity, and WLL embossed.
Material: Grade 80 steel with Alloy pin
Construction: Heat treated and stress relieved
Finish: Galvanized and coated
Proof load: Tested at 2 times the working load
Safety factor: 6 to 1
Fatigue: Fatigue tested at 1.5 times of WLL
Standard: As per US federal specification RR-C-271-D
CAPACITY : 1 Ton – 25 Tons.
