Description

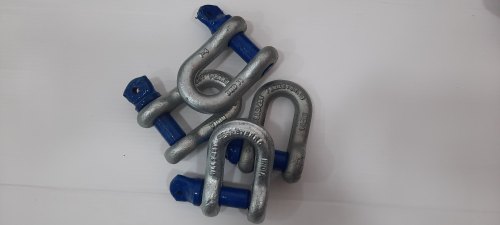

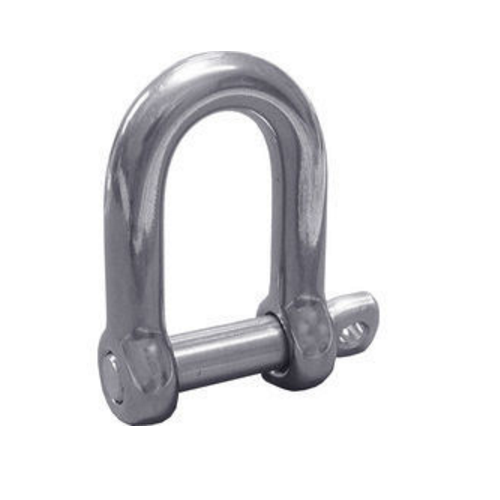

D Shackles Ideal for use with Lifting Slings and Toe ropes, shackles provide secure fastening and connection for a diverse range of jobs. Most commonly used on single-leg slings, dee shackles – as the name suggests – are shaped like the letter D.
Primarily used for temporary applications, screw pin products are great for jobs where shackles regularly need to be removed and re-attached. When using screw pin shackles, it’s important to remember to check the pin prior to each lift and re-tighten if necessary.
For jobs that include notable vibration, wire mousing can help to prevent the pin from coming unscrewed; however, safety pin shackles are usually preferable for such jobs.
Features:
• Designed for easy Frequent Application
• For use on direct lifting or single load systems.
• Traceability code, capacity, and WLL embossed.
Material: Grade 80 steel with Alloy pin.
Construction: Heat treated and stress relieved.
Finish: Galvanized and coated.
Proof load: Tested at 2 times the working load.
Safety factor: 6 to 1.
Fatigue: Fatigue tested at 1.5 times of WLL.
Standard: As per US federal specification RR-C-271-D.
CAPACITY : 1 Ton – 55 Tons.
